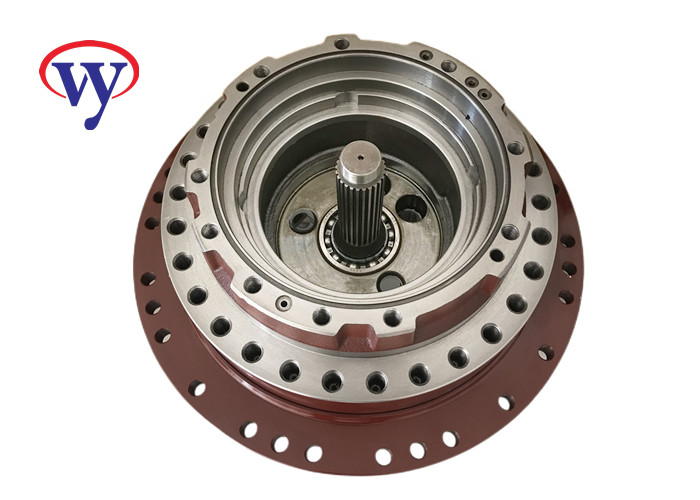

SK230-6E SK250-8 SK260-8 Final Drive Gearbox Small Reduction Gearbox LQ15V00007F1
| Brand Name | Weiyou |
|---|---|
| Model Number | SK230-6E SK250-8 SK260-8 |
| Minimum Order Quantity | 1 Piece |
| Price | dollar 935~1000 piece |
| Packaging Details | Standard Wooden Box for heavy parts,Strong carton for general parts,all packed with packing film |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T,Master card,Alipay...etc. |
| Supply Ability | 10 piece,1 day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Guangdong, China | Product Name | Hydraulic Travel Reducer Without Motor |
|---|---|---|---|
| Application | Excavator | Gearing Arrangement | Planetary |
| Mahine Model | SK230-6E SK250-8 SK260-8 | Compatible Brand | Sumitomo, Kabelco, SANY, Other |
| Condition | New And Original | Customized Support | OEM |
| Warranty | 6 Months | Part Number | LQ15V00007F1 |
| High Light | SH200A3 SH210-5 reduction gear types,reduction gear types SH240-3 SH240-5,HD820-2 small reduction gearbox |
||
Product Description
Final Drive Gearbox SH200A3 SH210-5 SH240-3 SH240-5 HD820-2 Travel Reduction Gearbox
All components of the travel gearbox were produced by our facility. You can assemble and mount in your Sumitomo SH200A3 excavator. The mounting holes for fitting motor, the girder and final drive hub are 12-M16, 30-M16, 30/22-M16. It applies to Sumitomo, Kato and sany brands.
| Title: | Weiyou parts SH200A3 Travel Reduction Device Travel Gearbox |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Place of Origin: | Guangdong, China |
| Gearing Arrangement: | Planetary |
| Application: | Excavator |
| Machine model: | SH200A3, SH210-5, SH240-3, SH240-5 |
| Compatible Brand: | Sumitomo, Kato, SANY, Other |
| Warranty: | 6 mouths |
| Packing: | Wooden Case |
| MOQ: | 1 Piece |
| Quality: | High-Quality |
| Customized support: | OEM |
| Brand Name: | Weiyou |
| Product name: | Hydraulic Travel Reducer Without Motor |
| Payment: | T/T, Alipay...etc. |
| Delivery time: | 4 days since getting the payment,not the customized item |
Travel Reduction Gearbox K230-6E SK250-8 SK260-8 PICTURES:
Product Details
We Can Provide Other Parts:
| Parts on group (SK210LC-6E) - DYNAMIC ACERA EXCAVATOR ASN YQ08U0969 (1/02-12/12): | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| . . | LQ15V00007F1 | [1] | MOTO-REDUCTION GEAR | KOB ASSY (PROPELLING) Superseded by part number: LQ15V00007F1M |
| . . | LQ15V00007F2 | [1] | HYDRAULIC MOTOR | KOB ASSY (PROPELLING) Superseded by part number: LQ15V00019F1 |
| . . | LQ15V00019F1R | [1] | REMAN-HYD MOTOR | RAC SK235SRLC-1E, SK235SRNLC-1E, Both BTW YU03-00648 - YU03-00770, SK235SRNLC-1E, SK235SRLC-1E, Both BTW YU02-00501 - YU02-00647, SK235SR-1E BTW YF02-01201 - YF02-01299, SK235SR-1E BTW YF03-01300 - YF03-01421, All SHORT RADIUS EXCAVATOR MOTOR ASSY, Reman for New PN LQ15V00007F2 |
| . . | LQ15V00019F1C | [1] | CORE-MOTOR HYDRAULIC | RAC Return Number |
| 1 | NSS | [1] | NOT SOLD SEPARAT | CON FLANGE, FOR (F1 ONLY) |
| 2 | NSS | [1] | NOT SOLD SEPARAT | CON PLATE |
| 3 | NSS | [1] | NOT SOLD SEPARAT | CON SPOOL |
| 4 | NSS | [2] | NOT SOLD SEPARAT | CON VALVE, CHECK |
| 5 | NSS | [2] | NOT SOLD SEPARAT | CON SPRING |
| 6 | NSS | [2] | NOT SOLD SEPARAT | CON PLUG |
| 7 | ZD12P02100 | [2] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOB O-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 8 | 2436U1027S203 | [2] | SEAT/SLOT | KOB SPRING |
| 9 | 2441U983S9 | [2] | SPRING | KOB |
| 10 | 2436U1027S205 | [2] | SEAT/SLOT | KOB SPRING |
| 11 | NSS | [2] | NOT SOLD SEPARAT | CON CAP |
| 12 | ZD12G04500 | [2] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOB ID 44.40 ± 0.41 x OD 50mm |
| 13 | ZS23C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOB M12x1.75x40mm |
| 14 | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 15 | LQ15V00007S015 | [2] | PLUG | KOB |
| 16 | NSS | [2] | NOT SOLD SEPARAT | CON ORIFICE |
| 18 | NSS | [4] | NOT SOLD SEPARAT | CON PLUG |
| 19 | NSS | [1] | NOT SOLD SEPARAT | CON SPOOL |
| 20 | NSS | [1] | NOT SOLD SEPARAT | CON SPOOL |
| 21 | LQ15V00007S021 | [1] | FILTER | KOB |
| 22 | ZD12P00600 | [1] | O-RING | KOB ID 05.80 ± 0.15 x OD 09mm |
| 23 | ZD12P00500 | [1] | O-RING | KOB |
| 24 | ZD85P00600 | [1] | BACK-UP RING | KOB |
| 25 | ZD85P00500 | [1] | BACK-UP RING | KOB |
| 26 | LQ15V00007S026 | [1] | RING | KOB RETAINING |
| 27 | LQ15V00007S027 | [1] | SPRING | KOB |
| 28 | 2441U792S141 | [1] | PLUG | KOB |
| 29 | ZD12P01800 | [2] | O-RING | KOB ID 17.8mm x OD 20.2mm |
| 30 | LQ15V00007S030 | [1] | GUIDE PIN | KOB SPRING |
| 31 | LQ15V00007S031 | [1] | PLUG | KOB |
| 32 | 2441U983S27 | [1] | WASHER | KOB |
| 33 | NSS | [6] | NOT SOLD SEPARAT | CON PLUG |
| 34 | NSS | [1] | NOT SOLD SEPARAT | CON ORIFICE |
| 35 | NSS | [2] | NOT SOLD SEPARAT | CON ORIFICE |
| 36 | NSS | [5] | NOT SOLD SEPARAT | CON ORIFICE |
| 37 | 2441U984S35 | [4] | PLUG | KOB |
| 38 | ZD12P01100 | [4] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 39 | LQ15V00007S039 | [2] | CHECK VALVE | KOB |
| 40 | LQ15V00007S040 | [2] | SPRING | KOB |
| 41 | ZD12P01200 | [2] | O-RING | KOB ID 11.80 ± 0.19 x OD 16mm |
| 42 | LQ15V00007S042 | [1] | SHAFT | KOB |
| 43 | NSS | [1] | NOT SOLD SEPARAT | CON BLOCK, CYLINDER |
| 44 | NSS | [9] | NOT SOLD SEPARAT | CON PISTON ASSY |
| 45 | NSS | [1] | NOT SOLD SEPARAT | CON PLATE |
| 46 | NSS | [1] | NOT SOLD SEPARAT | CON HOLDER |
| 47 | YN15V00005S114 | [1] | SNAP RING | KOB RETAINING |
| 48 | YN15V00005S115 | [1] | SPRING SEAT | KOB |
| 49 | YN15V00005S116 | [1] | SPRING | KOB |
| 50 | YN15V00005S117 | [1] | RING | KOB COLLER |
| 51 | 2441U792S119 | [3] | PIN | KOB |
| 52 | LQ15V00007S052 | [1] | PLATE | KOB Superseded by part number: LQ15V00007S046 |
| 53 | 2441U792S110 | [2] | BALL | KOB |
| 54 | NSS | [2] | NOT SOLD SEPARAT | CON PISTON ASSY |
| 55 | LQ15V00007S055 | [1] | BALL BEARING | KOB |
| 56 | LQ15V00007S056 | [1] | BALL BEARING | KOB |
| 57 | 2441U563S117 | [1] | PIN | KOB |
| 58 | ZS23C14035 | [10] | SCREW,Hex Socket Head, M14 x 35mm | KOB M14x2.0x35mm |
| 59 | 2441U983S121 | [1] | OIL SEAL | KOB Superseded by part number: 24100U84S25 |
| 60 | LQ15V00007S060 | [3] | PLATE | KOB DISK |
| 61 | 2441U983S126 | [2] | PLATE | KOB FRICTION |
| 62 | LQ15V00007S062 | [1] | KIT | KOB PISTON, BRAKE |
| 63 | 2441U984S42 | [1] | O-RING | KOB |
| 64 | 2441U983S130 | [1] | O-RING | KOB |
| 65 | 2441U792S130 | [8] | SPRING | KOB |
| 66 | YN15V00005S128 | [4] | PIN | KOB |
| 67 | YN15V00005S139 | [2] | SPRING | KOB |
| 68 | YN15V00005S105 | [1] | PLATE | KOB VALVE |
| 69 | ZD12P01000 | [4] | O-RING | KOB ID 09.80 ± 0.17 x OD 13mm |
| 70 | 2441U802S67 | [1] | O-RING | KOB |
| 71 | NSS | [1] | NOT SOLD SEPARAT | CON NAME PLATE |
| 72 | NSS | [2] | NOT SOLD SEPARAT | CON SCREW |
| 73 | NSS | [2] | NOT SOLD SEPARAT | CON PLUG |
| 74 | NSS | [1] | NOT SOLD SEPARAT | CON PLUG |
| 75 | NSS | [1] | NOT SOLD SEPARAT | CON PLUG |
| 76 | YN53D00003S211 | [1] | SEAL | KOB FROATING |
| 77 | LQ15V00007S077 | [2] | BEARING | KOB ANGULAR |
| 78 | NSS | [1] | NOT SOLD SEPARAT | CON HOUSING, FOR (F1 ONLY) |
| 79 | NSS | [1] | NOT SOLD SEPARAT | CON SHIM |
| 80 | LQ15V00007S080 | [1] | HOLDER | KOB Superseded by part number: LQ15V00019S074 |
| 81 | LQ15V00007S081 | [8] | FRICTION WASHER | KOB |
| 82 | LQ15V00007S082 | [8] | SCREW | KOB |
| 83 | LQ15V00007S083 | [4] | PLATE | KOB THRUST |
| 84 | LQ15V00007S084 | [4] | RACE | KOB INNER |
| 85 | LQ15V00007S085 | [4] | BEARING ASSY | KOB NEEDLE |
| 86 | LQ15V00007S086 | [4] | DRIVEN GEAR | KOB |
| 87 | LQ15V00007S087 | [4] | PLATE | KOB THRUST |
| 88 | LQ15V00007S088 | [4] | SCREW | KOB |
| 89 | LQ15V00007S089 | [1] | SUN GEAR | KOB |
| 90 | LQ15V00007S090 | [1] | RING | KOB SNAP |
| 91 | LQ15V00007S091 | [1] | HOLDER | KOB |
| 92 | LQ15V00007S092 | [3] | PLATE | KOB THRUST |
| 93 | LQ15V00007S093 | [3] | RACE | KOB INNER |
| 94 | LQ15V00007S094 | [3] | BEARING | KOB NEEDLE |
| 95 | LQ15V00007S095 | [3] | GEAR | KOB |
| 96 | LQ15V00007S096 | [3] | PLATE | KOB THRUST |
| 97 | LQ15V00007S097 | [1] | PLATE | KOB THRUST |
| 98 | LQ15V00007S098 | [3] | SCREW | KOB |
| 99 | LQ15V00007S099 | [1] | DRIVEN GEAR | KOB |
| 100 | NSS | [1] | NOT SOLD SEPARAT | CON PLATE,THRUST |
| 101 | LQ15V00007S101 | [1] | COVER | KOB |
| 102 | LQ15V00007S102 | [16] | SCREW,Hex Socket Head, M10 x 16mm | KOB Superseded by part number: ZS28C10016 |
| 103 | LQ15V00007S103 | [3] | PLUG | KOB |
| 104 | ZD12P02400 | [3] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 105 | LQ15V00007S105 | [4] | PIN | KOB |
| 106 | NSS | [1] | NOT SOLD SEPARAT | CON FLANGE,FOR (F2 ONLY) |
| 107 | NSS | [1] | NOT SOLD SEPARAT | CON HOUSING,FOR (F2 ONLY) |
| . . | LQ15V00007R100 | [1] | REPAIR KIT | KOB CONSISTS OF REF 7(2),12(2),14(2),22(1),23(1),24(1),25(1),29(2),41(2),59(1),63(1),64(1),69(4),70(1) Superseded by part number: LQ15V00019R100 |
| . . | LQ15V00007R200 | [1] | REPAIR KIT | KOB CONSISTS OF REF 76(2),104(3) Superseded by part number: LQ15V00031R200 |
| . . | LQ15V00007R300 | [1] | REPAIR KIT FOR (F1 ONLY(CONSISTS OF REF 1(1),54(2) | REPAIR KIT FOR (F1 ONLY(CONSISTS OF REF 1(1),54(2) |
| . . | LQ15V00007R400 | [1] | REPAIR KIT | KOB CONSISTS OF REF 2(1),18(4),33(6),34(1),35(2),36(5),37(4),38(4) |
| . . | LQ15V00007R500 | [1] | REPAIR KIT | KOB CONSISTS OF REF 11(1),12(1),13(4),14(1),15(1),16(1) |
| . . | LQ15V00007R600 | [1] | REPAIR KIT | KOB CONSISTS OF REF 43(1),44(9),45(1),46(1),47(1),48(1),49(1),50(1),51(3) Superseded by part number: LQ15V00019R600 |
| . . | LQ15V00007R700 | [1] | REPAIR KIT | KOB CONSISTS OF REF 79(1) |
| . . | LQ15V00007R800 | [1] | REPAIR KIT | KOB CONSISTS OF REF 100(1) |
| . . | LQ15V00007R900 | [1] | REPAIR KIT | KOB FOR (F2 ONLY) CONSISTS OF REF 54(2),106(1) |
WHY US:
We have high market share in Oversea market and Domestic market, Southeast Asia 60%, Russia 10%, Middle East 8%, North and South America 10%,Europe 8%, others 4%.
|
Strength background |
We are the manufacturer and own 20000 ㎡ factory areas, good relationship with material suppliers, which make more competitive price and steady quality. |
|
Technical support |
We have 16 senior engineers and more than 120 sets of advanced production equipment, with more than 30 years of design and processing experience. |
|
Good service attitude |
Our sales term offer the efficient service for every customers. No matter the size of the trade, as long as the customer orders, our sales staff will provide efficient service. |
| Support customized requirements | We develop spare parts for old and new excavator models, and submit our latest products to customers every month so that to meet the market demand. |
